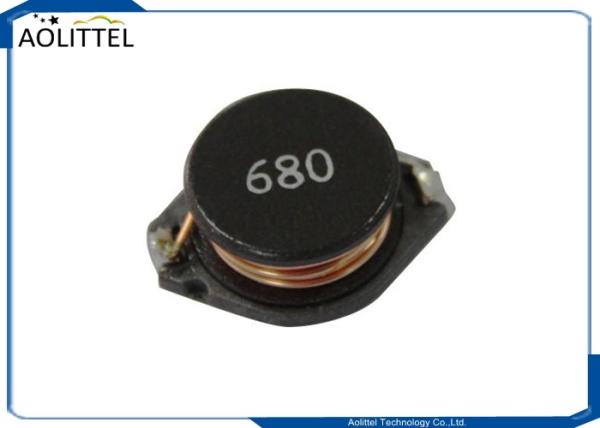

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
Products Series: Axial Leaded Inductor, Choke Inductor, Power Inductor, IFT Coil, Toroidal Inductor, Transformer & Line Filter, Multilayer Inductor, Air Coil, Chip Bead etc.
Production Ability: 1500 Employees; 70000㎡ Workshop; Monthly Capacity: 260 Million pieces totally
R&D Ability: 73 R&D Engineer and 35 QE, Independent Research and Development Equipment
Marketing Development: Global Top 500 Companies, Large-scale enterprises in China and abroad, Listed companies and famous enterprises in electronic industry.
Quality Control and Standards: Cenker is operating according to international standards all the time, and has gotten the approval of ISO9001:2008 Product Quality Certificate and ISO14001:2004 Environmental Management System Certificate and TS16949:2009.

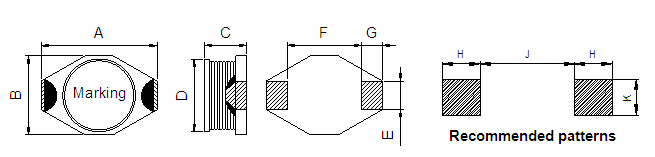

SHAPES AND DIMENSIONS (Unit:mm)
| TYPE | A (Max) | B (Max) | C (Max) | D | E | F | G | H | J | K |
| CKOB1608 | 8.0 | 4.8 | 3.5 | 4.5 | 1.2 | 3.9 | 1.15 | 0.95 | 3.83 | 1.16 |
| CKOB1306 | 14.0 | 10.0 | 5.2 | 8.4 | 2.54 | 7.6 | 2.54 | 2.92 | 7.37 | 2.79 |
| CKOB1312 | 14.0 | 10.0 | 11.5 | 8.4 | 2.54 | 7.6 | 2.54 | 2.92 | 7.37 | 2.79 |
| CKOB1808 | 19.5 | 15.5 | 7.0 | 12.7 | 2.7 | 12.7 | 2.54 | 2.92 | 13.10 | 2.79 |
Specification

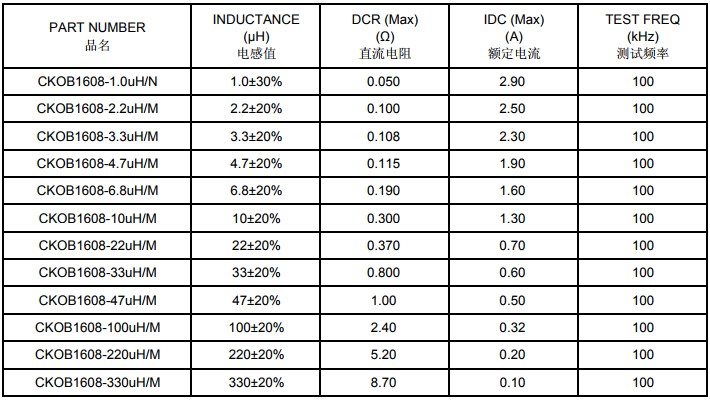

1608 series

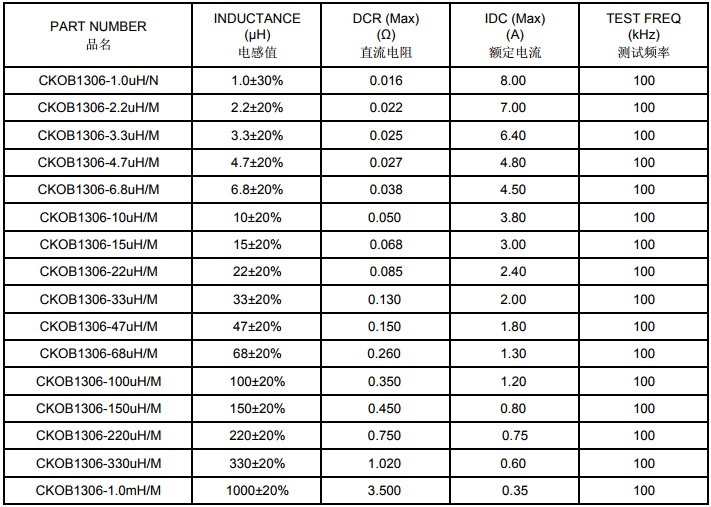

1306 series

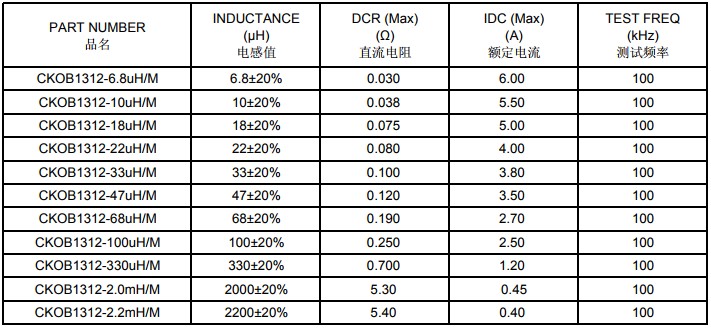

1312 series

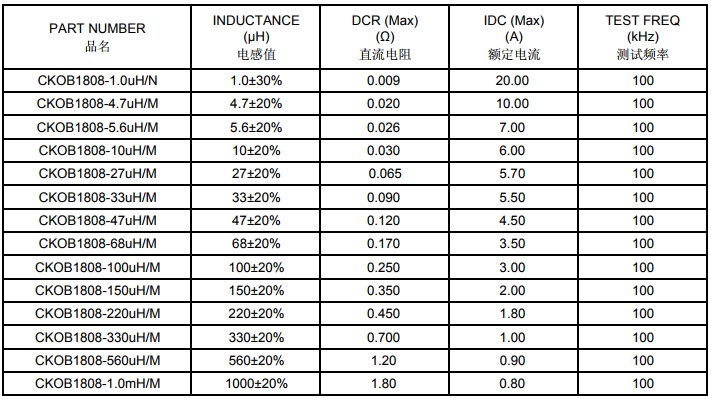

1808 series
Remark:
● Inductance Tested at 100kHz,0.25Vrms (20℃)
● IDC: DC current at which the inductance drops approximate 20% from its value without current
● Operating Temperature : -25℃ ~ +105℃
● Measure Equipment:
INDUCTANCE : Agilent HP-4284A , HP-4285A
IDC : Agilent HP-4284A+HP-42841A
DCR : CHEN HWA 502A

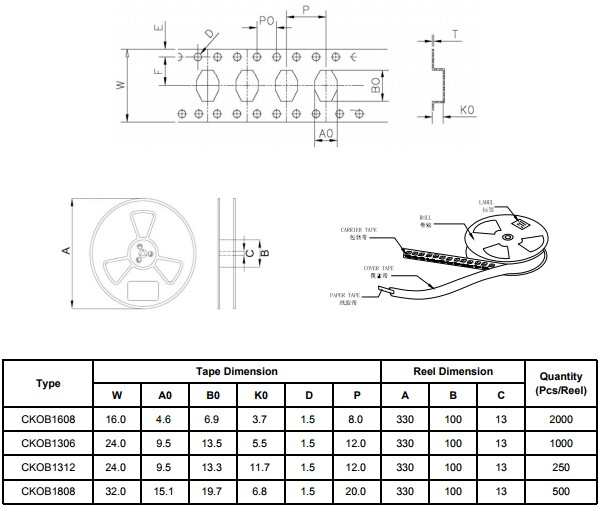

Pakcage
Features
The Sureface Mount Inductors are designed for the smallest possible size and high performance. They are with high energy storage and very Low reslstance making them the ideal inductors for DC-DC conversion in the following applications.Surface mount power inductors for applications ranging from power supply to power converters. Core types include ferrite and pressed iron powder with topologies including: non-shielded, shielded, pressed iron powder, ferrite coated, and wirewound chip inductors.
Application
VGA display card,Notebook Computers,PDAs,Step-up and step-down converters. Flash Memory programmers,etc.
Our Advantages
TDK experience engineer
Over 10 years ferrite material experience
Over 7 years in automotive customer
Executive team led by engineers
Financial stability, strong balance sheet
Corporate Social Responsibility
Leadership in design and manufacture of automation
World Class DPPM(some of parts passed AEC-Q200)
Rapid response to customer inquiry and corrective action
Powder development increased -provides a high performance (high current, low DCR) to our customers.
